Power State

DC input receives power

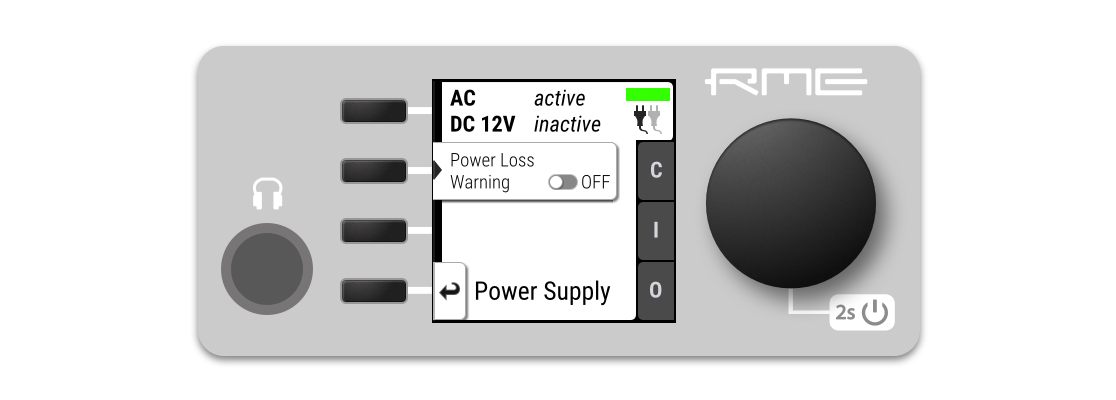

The power tab in the STATE section informs the user which of the two power inlets receive power. Its icon is a realtime representation of the current power state, with an inactive power supply shown in grey. The AC input corresponds to the left icon, the DC input to the right icon.
To check the current power state on the device:

  1. Open the power tab in the STATE section

    Power Tab in State section

  2. The state of each PSU is shown as active if it receives power.

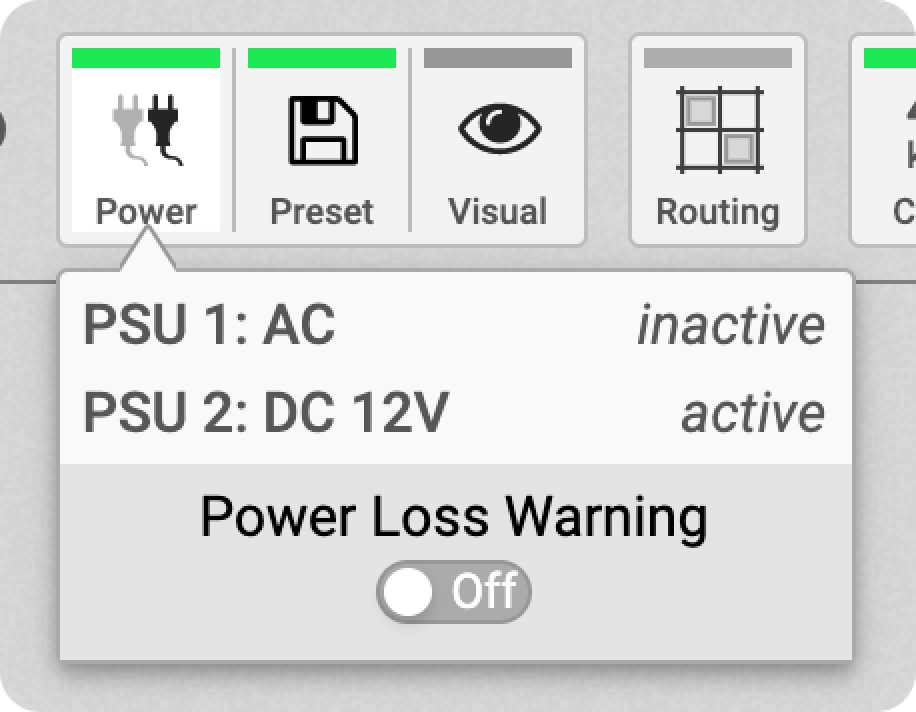

To check the current power state:

  1. Connect the device by USB or network cable and open the web remote.

    w12 111 1C 2

  2. A click on the Power icon shows the current state of the power supplies.

Notification of Single Power Failure

A warning can be displayed when one of two connected power sources fails.

On the display, the "S" state indicator will turn red. In the main menu, a warning is signaled as an icon with a red bar:

wAL 110 2T 1

Power loss at DC input

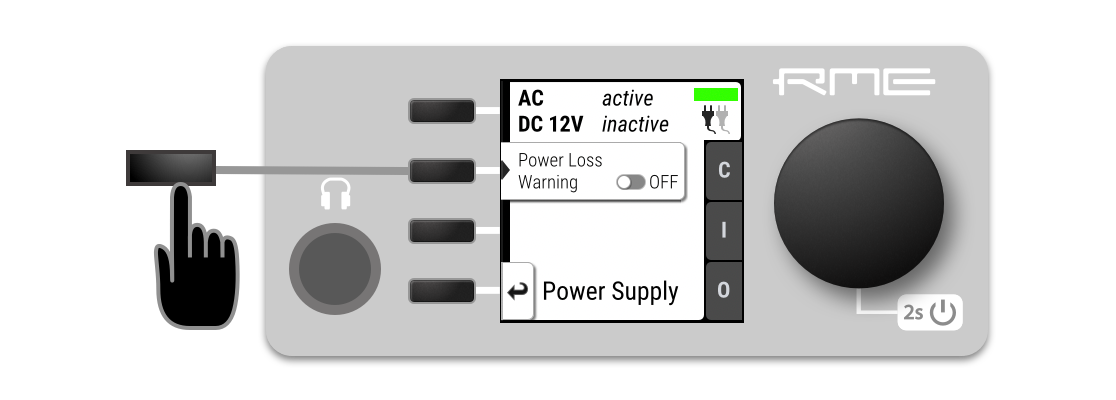

To activate the warning on the device:

  1. Open the power tab in the STATE section.

    PSU Tab in State section

  2. Toggle the switch Redundancy to On.

The warning signals only the current state.

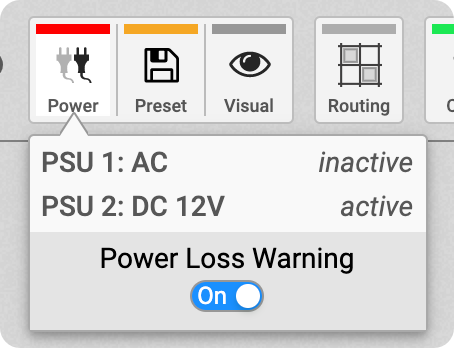

To activate the warning on the web remote:

  1. Connect the device by USB or network cable and open the web remote.

    PSU Tab in State section

  2. Toggle the "Power Loss Warning" to On.
