Analog Line Output Connectors

wDA 020 21C 1

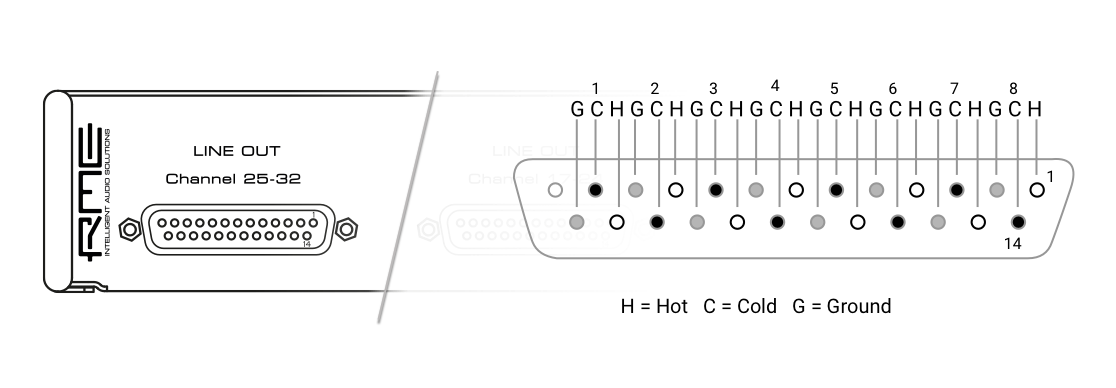

The rear of the M-32 DA Pro II-D features 25-pin D-sub connectors labeled "LINE OUT" with Tascam®-pinout.

The short circuit protected, low impedance balanced line outputs at the D-Sub connectors do not operate servo balanced. When connecting unbalanced equipment, make sure pin 3 ("cold") of the output is not connected. A connection to ground may cause a decreased THD (higher distortion) and increased power consumption!
