Quick Start (Dante)

Follow this procedure to get running quickly!

  1. Load Preset 16 (Factory settings) from the STATE section

    Presets

  2. In the CLOCK section, choose a sample rate and verify that Dante is chosen as the current clock source.

    Clock

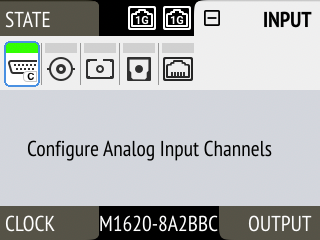

  3. After connecting an analog signal, adjust its reference level as needed in the INPUT section

    Analog input configuration

  4. Open the tab of the Dante output in the OUTPUT section and choose "Analog 1-32" as source.

    Dante Output

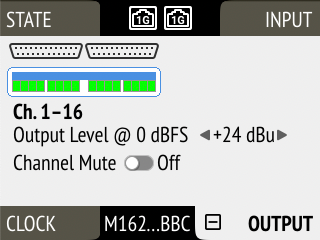

  5. Set the preferred reference level in the analog configuration tab of the OUTPUT section, Configuration tab:

    Analog output configuration

  6. Choose Dante as the digital input source for the analog outputs in the OUTPUT section, Routing tab:

    Analog output routing

done! The Dante Controller can now be used to connect signals from other Dante devices to the M-1620 Pro D. These are then routed to the analog outputs. The Dante Controller can now be used to connect signals from the analog inputs of the M-1620 Pro D to other Dante devices.
