Analog Line Output Connectors
![wDA 020 21C 1](../../shared/_images/wDA-020-21C-1.png)

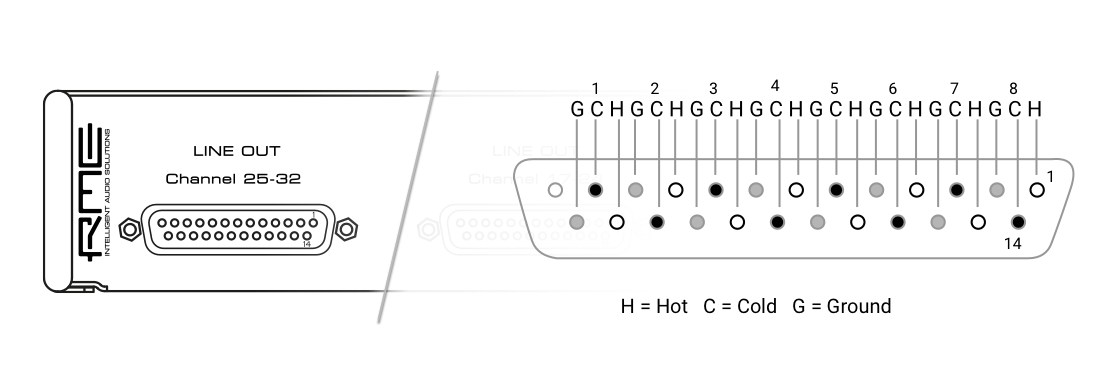

The rear of the M-32 DA Pro II features 25-pin D-sub connectors labeled "LINE OUT" with Tascam®-pinout.
The short circuit protected, low impedance balanced line outputs at the D-Sub connectors do not operate servo balanced. When connecting unbalanced equipment, make sure pin 3 ("cold") of the output is not connected. A connection to ground may cause a decreased THD (higher distortion) and increased power consumption! |
