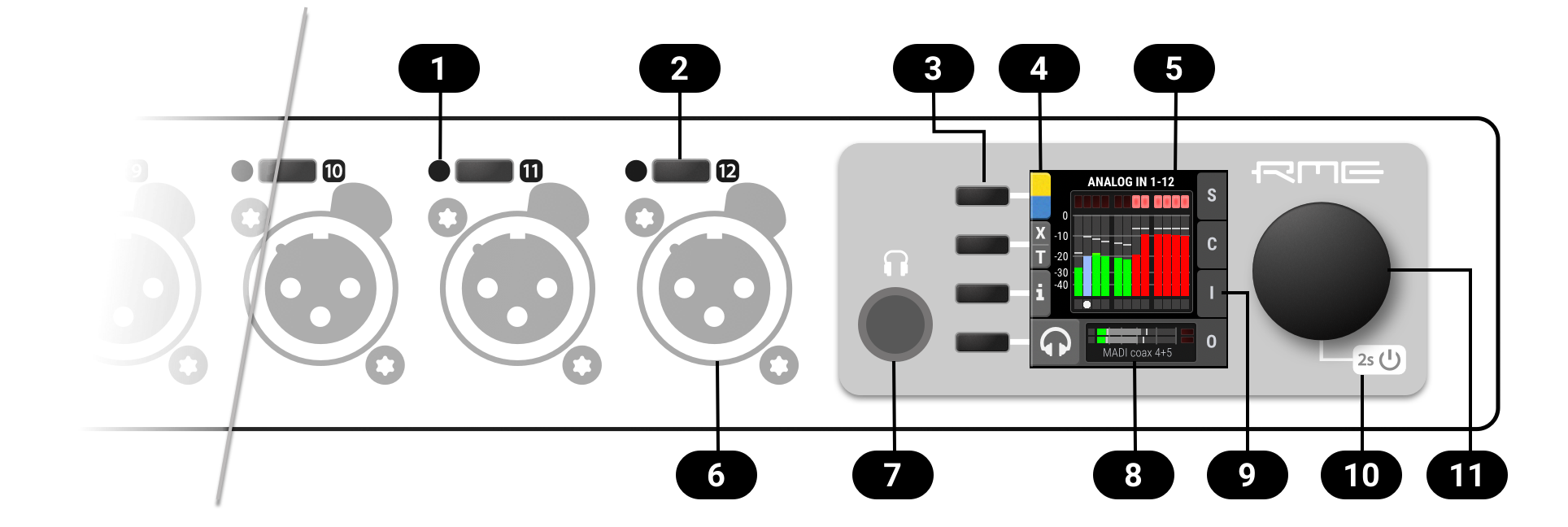

Control Section

w12 021 7C 1

wAL co 1

Analog Input LEDs with Integrated Metering

wAL co 2

Analog Inputs

wAL co 3

Display buttons

wAL co 4

Toggle P48/Hi-Z/TRS

wAL co 5

Display

wAL co 6

Analog Input Connectors

wAL co 7

Headphone Output

wAL co 8

Phones output with routing

wAL co 9

Input tab with warning

wAL co 10

Standby Switch

wAL co 11

Encoder

The 12Mic-D can be configured at the device. To do so, the TFT display shows a menu. The adjacent encoder knob and buttons are used to navigate and change settings. In addition, each input channel has a dedicated button to access its controls.

wAL 021 7C 2

The encoder can be pushed in order to activate an item,

wAL 021 7C 3

and rotated left and right in order to select an item.

If the device is powered on but the display shows no content, dark mode is active. Rotate the encoder to temporarily bypass this mode and show the display.
