Quick Start (MADI)

Follow this procedure to send microphone input signals to the digital outputs.

1. Load Preset 1 from the STATE>Preset tab. If Preset 1 has been modified, load the quick start preset Presets.

2. In the CLOCK section, choose a sample rate and verify that the device is clock master or that the chosen clock source is in sync.

Presets

Clock Master

3. After connecting an analog signal, adjust its gain and phantom power as needed: press the button next to the input.

4. Then, use the buttons and encoder next to the display to adjust settings as needed.

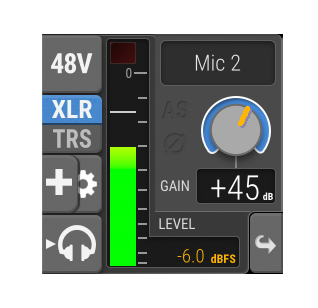

Analog input settings

done! The channels are sent to the ADAT, MADI and AVB outputs.
